TORP TC1000 controller (50kW) kit for Talaria MX3 / MX4 / Sting R

Description

Description:

• Are you planning to upgrade your stock Talaria engine? Then the TC1000 controller is the right choice.
• Increase the performance of your Talaria MX3 / MX4 engine with the TC1000 controller. The maximum power output with the serial battery is (11.5 kW) for the Talaria MX4 and (8 kW) for the MX3.
• Compatible with stock Talaria and aftermarket batteries (60V, 72V and 80V 22S). Easy installation and even easier setup to your preference with the Torp!

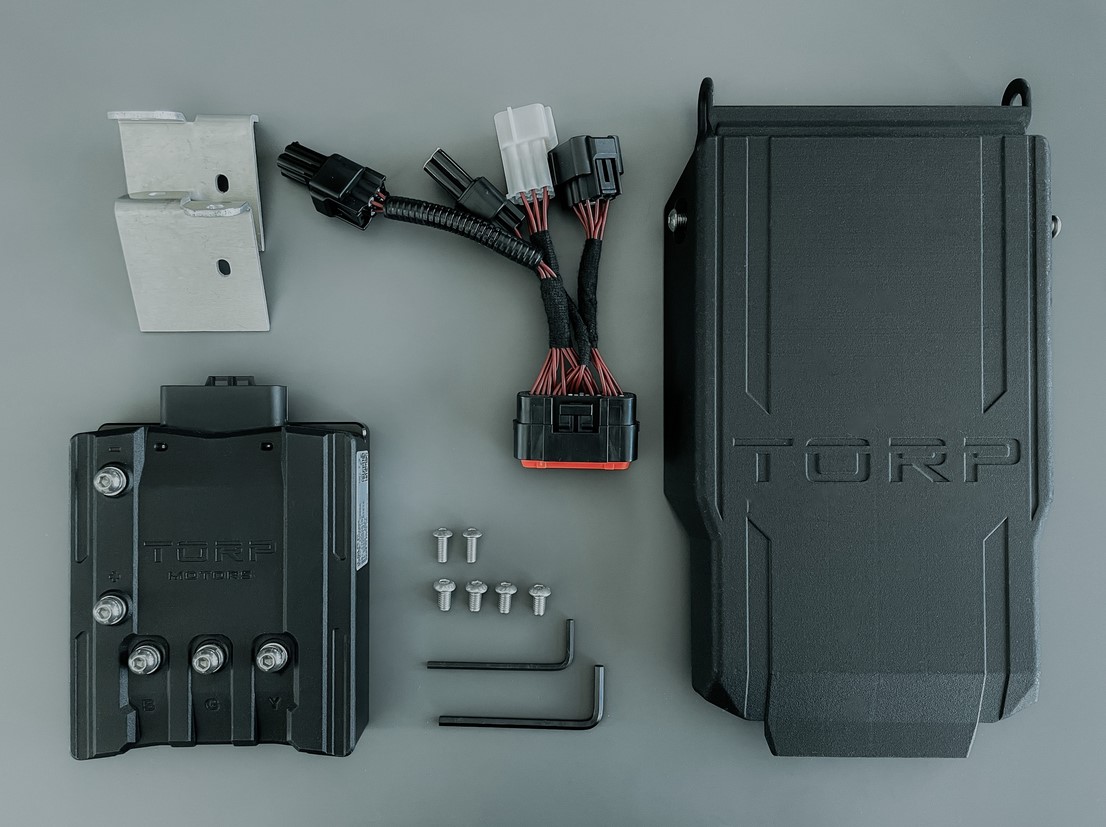

INCLUDED:

• 1x TC1000 control unit
• 1x cable harness
• 1x plastic shield
• screws and tools needed for installation
• 4x stickers
• short instructions

SPECIFICATIONS:

• Field Oriented Control (FOC)
• Supported batteries: up to 80V nominal 22S (92.4V fully charged)
• Maximum power: 50 kW
• Sensor (HALL Encoder) and sensorless steering
• Maximum battery current: 700 A

*In combination with the standard Talaria MX3 / MX4 e-motor and the aftermarket 72V battery, the maximum output is 18 kW.

Important: Currently, the controller CANNOT communicate with the Talaria serial battery manufactured by SCUD. Please read before purchasing. Other controller functions are unaffected.

• Maximum phase current: 1000 A
• Efficiency up to 99%
• Operating temperature: from -15 to 75 C°
• Communication via Bluetooth
• Pre-calibrated: Easy calibration via mobile app
• Protection against overcurrent, overvoltage, undervoltage and overheating
• Communication with warehouse BMS
• Different regenerative braking and throttle modes
• Weight: 1.3 kg
• Features: – gearbox, – gearbox, – gearbox, gearbox, gearbox: mobile app (IOS and Android), stock SurRon display
• Protection class: IP67
• Regular firmware updates
